Sub Align is a must-have survival tool for any live sound engineer. This plugin lets FOH engineers align subwoofer and top speakers in PA systems where the subs are tied in with the tops, and the system processor is inaccessible. By doing so, Sub Align offers a revolutionary solution to a problem live sound engineers have been struggling with on a daily basis.
The Problem
The physical position of tops and subs and the distance between them are critical for the overall punch and clarity of the PA system. However, most performers and engineers play small and mid-sized venues, where very often the tops and the subs are not properly aligned. In order to clear floor space, the subs are usually stacked at the sides of the venue or all the way in the back, causing the sound to be smeared and unfocused. To make things worse, the system processor is seldom accessible to the live sound engineer, and the PA subs are tied in with the tops.
The Solution

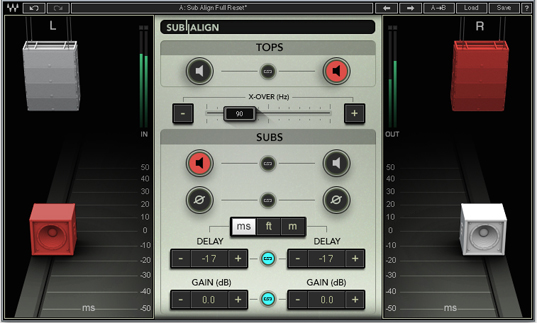

Sub Align puts YOU in charge of the venue's PA sound with a simple and original solution: by giving you control over the delay between your tops and subs and creating a crossover point between them, it enables you to “move” your subs back or forward in relation to the tops, until you reach the alignment point that sounds best to your ears. No longer do you have to waste precious time fighting unaligned PA systems with EQs and compressors. To achieve extra clarity and punch, Sub Align also gives you control over the subs' volume and polarity/phase.
Take Control
Don't let badly aligned PA systems dictate how your mix will sound! Sub Align puts the control in your hands, enabling you to get a clearer, punchier mix no matter what venue you're mixing in.
Product Details:
- An essential survival tool for live sound engineers
- Full control over your sub and top alignment
- Adds punch and clarity
- Quick and easy to use
- Dramatically improves your live sound
Sub Align (V9) - Supported Platforms
Sub Align (V9) - Sample Rate
All Waves plugins support 44.1 kHz and 48 kHz; most support higher sample rates.
Avid VENUE supports up to 48 kHz.
Sub Align (V9) - Channel Components
Sub Align (V9) - Latency
The table below indicates how much latency is produced by each plugin, in samples.
Not all plugins support all platforms (MultiRack, StudioRack, eMotion, Venue). Check the Supported Platforms table for more info.
System Requirements:
Mac:
CPU
- Intel Core i3 / i5 / i7 / Xeon
RAM
- 4 GB
Operating System
- 10.9.5 - 10.11
Screen Resolution
- Minimum: 1024x768
- Recommended: 1280x1024 / 1600x1024
- USB displays are not supported as the primary display.
Windows:
CPU
- Intel Core i3 / i5 / i7 / Xeon
RAM
- 4 GB
Operating System
- Windows 7 with SP1 64 bit
- Windows 8.1 64 bit
- Windows 10 64 bit
Screen Resolution
- Minimum: 1024x768
- Recommended: 1280x1024 / 1600x1024
*Most Audio Hosts include:
Windows:
Pro Tools 11.3.1 - 12.3 (AAX Native 64-bit, Audiosuite)
Pro Tools 10.3.8 - 10.3.10 (RTAS, Audiosuite)
Ableton Live 9.1.6 - 9.5 (VST)
Nuendo 6.5.35 - 7.0.20 (VST3)
Cubase 7.5.30 - 8.0.30 (VST3)
WaveLab 8.5 (VST3)
Sonar X3e (VST3), Platinum (VST3)
Sound Forge 10.0e, 11 (VST)
Vegas 12 - 13 (VST)
Acid 7.0e (VST)
Audition CC2014, CC2015 (VST3)
Adobe Premiere CC2014, CC2015 (VST3)
Samplitude Pro X (VST), Pro X2 (VST3)
Sequoia 12 - 13 (VST)
Pyramix 9.0.7 - 9.1.6 (VST)
Studio One 3.1 (VST3)
Media Composer 7.0.4 (RTAS), 8.1, 8.4 (AAX Native)
FL Studio 12.1.3 (VST3)
Mac:
Pro Tools 11.3.1 - 12.3 (AAX Native 64-bit, Audiosuite)
Pro Tools 10.3.10 (RTAS, Audiosuite)
Logic Pro X 10.2 (Audio Units)
Digital Performer 9.0 (Audio Units)
Ableton Live 9.2.2 - 9.5 (VST)
Nuendo 7.0.20 (VST3)
Cubase 8.0.30 (VST3)
Main Stage 3.2 (Audio Units)
Garage Band 10.1.0 (Audio Units)
Audition CC2015 (VST3)
Adobe Premiere CC2015 (VST3)
Final Cut Pro X 10.2.2 (Audio Units)
Studio One 3.1 (VST3)
Media Composer 8.4.1 (AAX Native)
Sound Forge Pro 2.5 (Audio Units)
- An essential survival tool for live sound engineers
- Full control over your sub and top alignment
- Adds punch and clarity
- Quick and easy to use
- Dramatically improves your live sound
Sub Align (V9) - Supported Platforms
Sub Align (V9) - Sample Rate
All Waves plugins support 44.1 kHz and 48 kHz; most support higher sample rates.
Avid VENUE supports up to 48 kHz.
Sub Align (V9) - Channel Components
Sub Align (V9) - Latency
The table below indicates how much latency is produced by each plugin, in samples.
Not all plugins support all platforms (MultiRack, StudioRack, eMotion, Venue). Check the Supported Platforms table for more info.
System Requirements:
Mac:
CPU
- Intel Core i3 / i5 / i7 / Xeon
RAM
- 4 GB
Operating System
- 10.9.5 - 10.11
Screen Resolution
- Minimum: 1024x768
- Recommended: 1280x1024 / 1600x1024
- USB displays are not supported as the primary display.
Windows:
CPU
- Intel Core i3 / i5 / i7 / Xeon
RAM
- 4 GB
Operating System
- Windows 7 with SP1 64 bit
- Windows 8.1 64 bit
- Windows 10 64 bit
Screen Resolution
- Minimum: 1024x768
- Recommended: 1280x1024 / 1600x1024
*Most Audio Hosts include:
Windows:
Pro Tools 11.3.1 - 12.3 (AAX Native 64-bit, Audiosuite)
Pro Tools 10.3.8 - 10.3.10 (RTAS, Audiosuite)
Ableton Live 9.1.6 - 9.5 (VST)
Nuendo 6.5.35 - 7.0.20 (VST3)
Cubase 7.5.30 - 8.0.30 (VST3)
WaveLab 8.5 (VST3)
Sonar X3e (VST3), Platinum (VST3)
Sound Forge 10.0e, 11 (VST)
Vegas 12 - 13 (VST)
Acid 7.0e (VST)
Audition CC2014, CC2015 (VST3)
Adobe Premiere CC2014, CC2015 (VST3)
Samplitude Pro X (VST), Pro X2 (VST3)
Sequoia 12 - 13 (VST)
Pyramix 9.0.7 - 9.1.6 (VST)
Studio One 3.1 (VST3)
Media Composer 7.0.4 (RTAS), 8.1, 8.4 (AAX Native)
FL Studio 12.1.3 (VST3)
Mac:
Pro Tools 11.3.1 - 12.3 (AAX Native 64-bit, Audiosuite)
Pro Tools 10.3.10 (RTAS, Audiosuite)
Logic Pro X 10.2 (Audio Units)
Digital Performer 9.0 (Audio Units)
Ableton Live 9.2.2 - 9.5 (VST)
Nuendo 7.0.20 (VST3)
Cubase 8.0.30 (VST3)
Main Stage 3.2 (Audio Units)
Garage Band 10.1.0 (Audio Units)
Audition CC2015 (VST3)
Adobe Premiere CC2015 (VST3)
Final Cut Pro X 10.2.2 (Audio Units)
Studio One 3.1 (VST3)
Media Composer 8.4.1 (AAX Native)
Sound Forge Pro 2.5 (Audio Units)
